Combined paint spraying and drying booths: Efficient paint spraying and drying

For high-quality paint spraying and drying of your workpieces we deliver combined paint spraying and drying booths including either complete or sectional vertical ventilation during the paint spraying operation. Aforementioned system has proved highly effective on the market thanks to the particularly high energy savings it achieves.

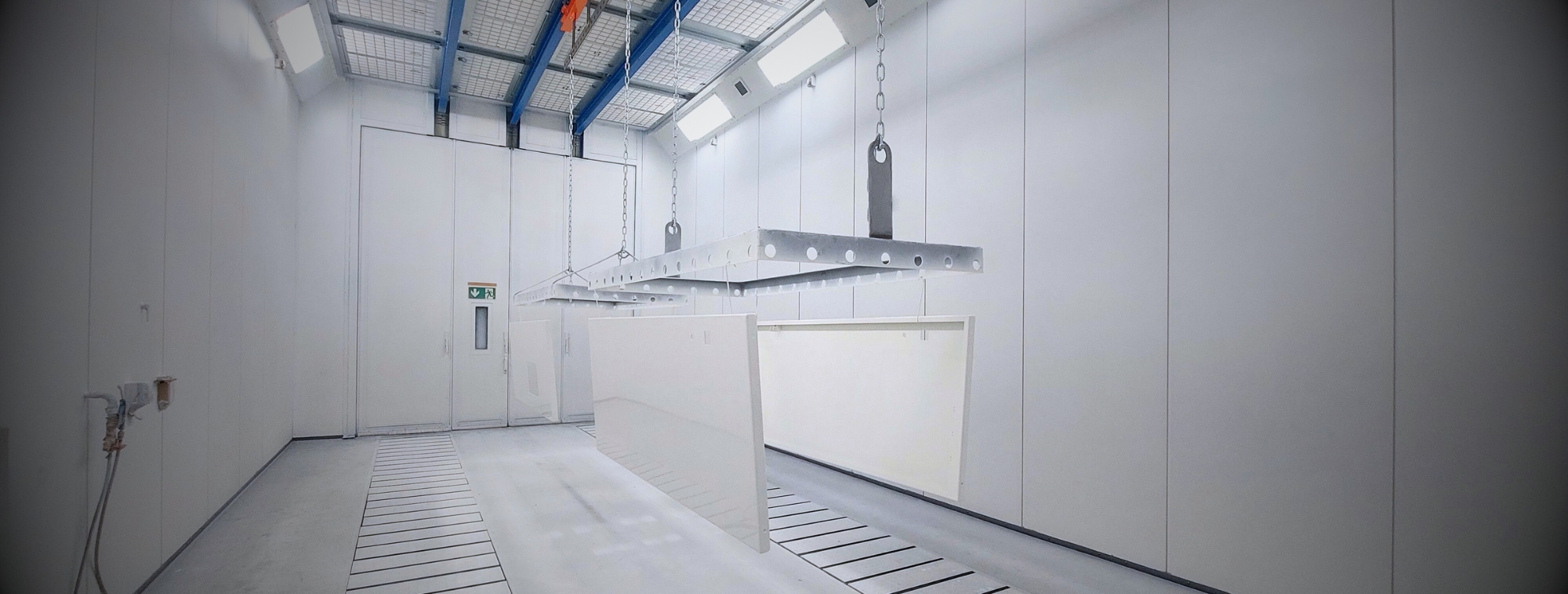

On request, we implement conveyor technique, lifting platforms or paint application technique in your combined paint spraying and drying booth. In addition, we deliver ventilation components and other equipment for paint mixing or paint storage rooms.

Reduction of operating and maintenance costs to a minimum

Thanks to our sectional ventilation system reducing the electrical and thermal energy huge savings can be made on operating costs. That means fresh air and exhaust air is supplied and extracted within the currently active painting area.

Maintenance costs of our combined paint spraying and drying booth are considerably reduced by using our first filter stage with impact separators as well as the so-called quick clean system.

Individual system concept according to your requirements

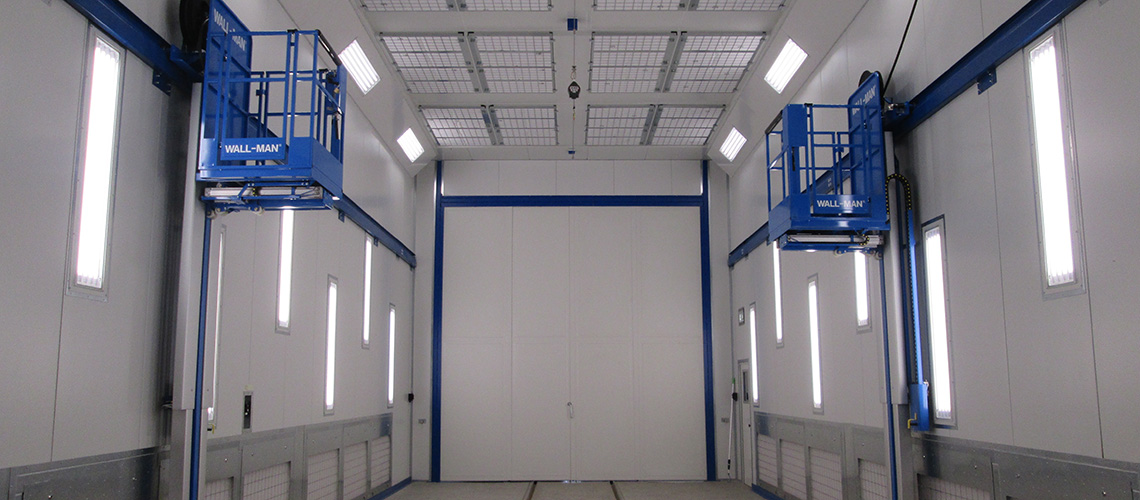

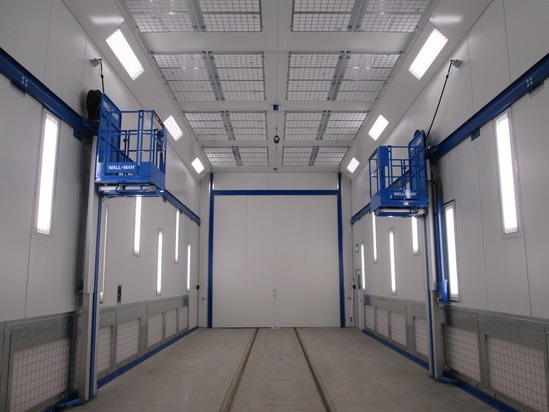

Each of our combined paint spraying and drying booths is adapted to 100% to your individual requirements. Whether you wish to integrate conveyor technique, separate a booth area with a roll-up door or implement lifting platforms in your booth – we always find the perfect solution!

Request individual solution

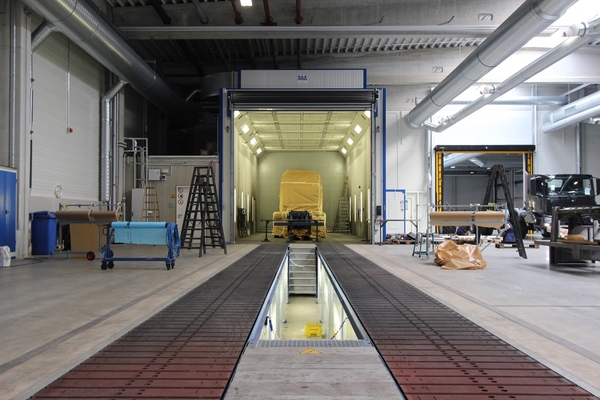

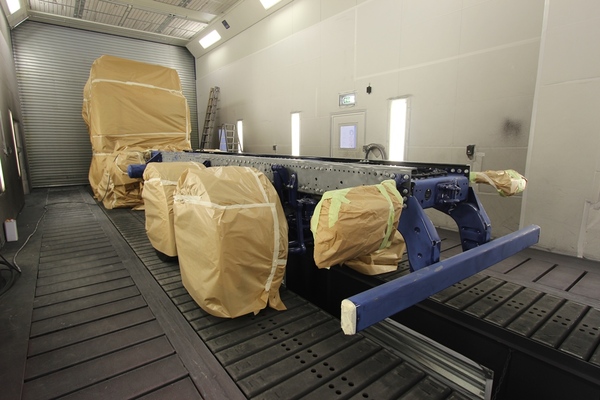

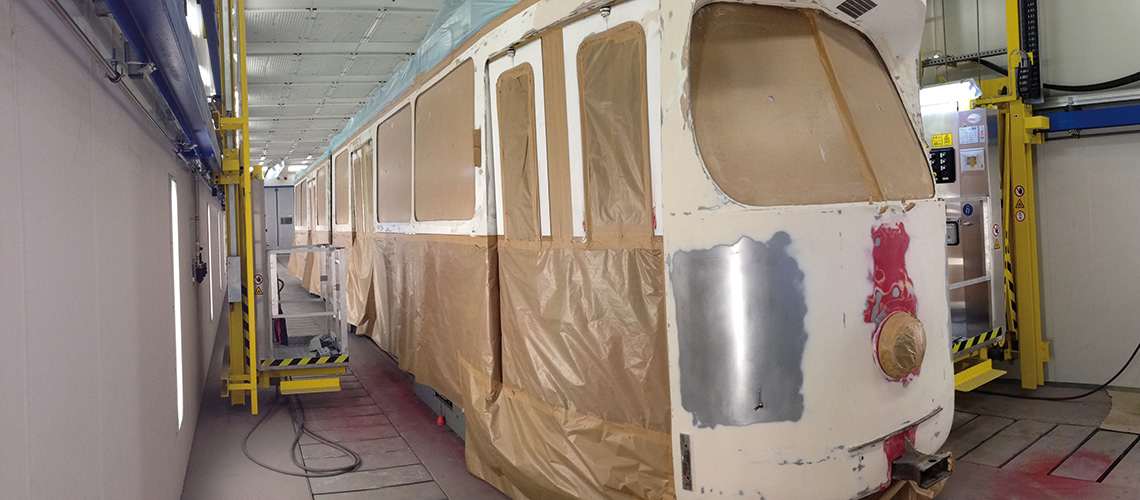

Examples
