Maximum Flexibility for your Process

Scissors-type Lifting Platforms

Our scissor lifting platforms are specially designed for use in washing booths, blasting rooms, zinc spraying areas and paint spraying booths. They enable safe and efficient work in demanding industrial environments.

All movement axes of our lifting platforms are electrically driven – a major advantage in everyday operation. Electric drives allow for precise, pinpoint control and offer greater flexibility in motion control compared to pneumatic systems.

Depending on the model, our lifting platforms offer:

- Reach extension of up to 5 m (from the front edge of the platform basket) for maximum flexibility

- Load capacity up to 250 kg for safe handling of equipment

- Standard use in booths up to 10.2 m high, with custom solutions available for greater heights

Even in booths exceeding 100 m in length - such as those used in wind turbine production - our scissor lift platforms are used successfully.

Further Advantages of our Scissors-type Lifting Platforms at a Glance

✔  Dust- and wear protected design - ideal for use in blasting rooms
✔  Electric drive with explosion protection, safe for use in paint spraying booths
✔  Low wear and tear due to drives positioned outside the direct working area
✔  Simoultaneous driving and working possible
✔  Increased safety for personnel thanks to raised guide rails - no floor rails required

Each scissor-type lifting platform is custom-designed and built to meet your specific requirements—ensuring seamless integration into your production process.
For example, mobility can be expanded by an additional axis by equipping the platform with a swiveling basket.

To provide maximum flexibility, our lift platforms are also available without front guard rails. In this case, a fall protection system with rail-guided safety harnesses ensures full safety for personnel while allowing a wide and flexible range of motion.

In addition to wall-guided scissor lift platforms, our product range for surface treatment also includes the following types:

A flexible custom solution

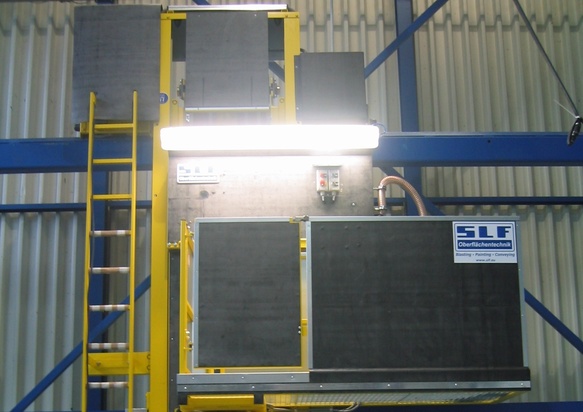

Folding Scissor Lifting Platform

In special cases, a folding mechanism on the platform basket ensures optimal access to the workpiece.

The large platform surface provides ergonomic working conditions for operators.



Simpel and effective

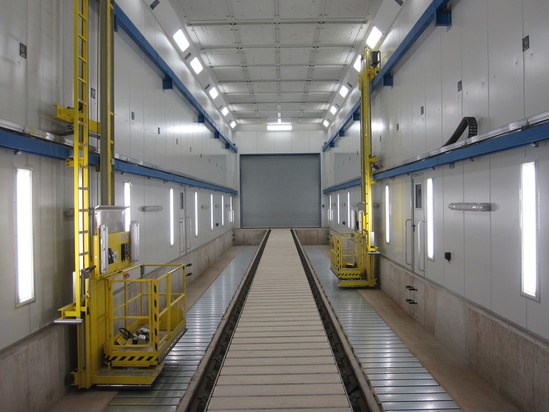

Swivelling Lifting Platforms

The spacious platform size of 2,150 × 850 mm allows comfortable work — also for two operators.

These platforms can swivel with reach up to 2,860 mm and load capacity up to 250 kg.



Maximum Flexibility

Vertical Telecope Lifting Platforms

Our overhead crane-guided vertical telescopic lift platforms feature four movement axes and a rotating work platform (+/-180°).

Thanks to the side-mounted telescopic axis, operators can move over large components safely and efficiently.

On request, we can equip your lifting platforms with additional fuctional features:

✔  Folding guard rails above escape doors for safe platform transitions
✔  Transport shelves for paint buckets and application tools
✔  Special connections for compressed air or central dust extraction
✔  Bumper strips to prevent collision damage
✔  Ergonomic folding rails for easier access
✔  Sockets for power tools
✔  Basket lighting for optimal visibility
